Evo DDC 3.1

$867.00
| /
description
Digital To Digital Converter with support for DSD and PCM up to 384kHz on I2S output

Technical specifications

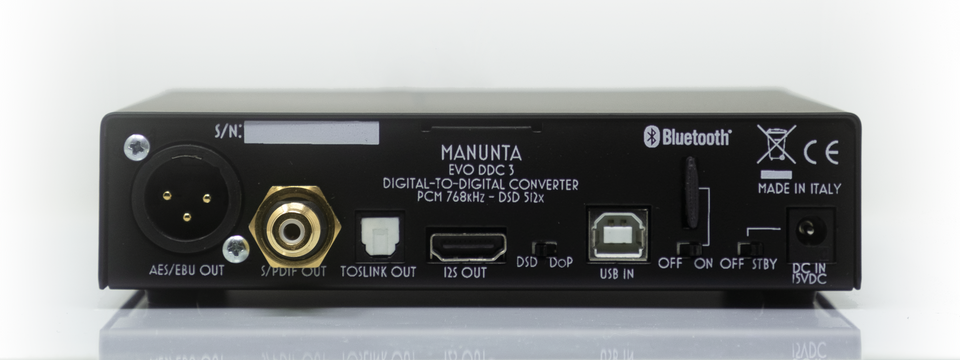

  • Inputs & Outputs

    Inputs:
    Async USB 2.0

    Outputs:
    S/PDIF, AES/EBU, optical Toslink, I2S

    Control/Settings:
    By front panel and remote control.

  • Audio

    PCM Sampling Frequency:
    44.1kHz to 768kHz (I2S)
    44.1kHz to 192kHz (other outputs)

    PCM Resolution:
    16 to 32 bits (I2S)
    16 to 24 bits (other outputs)

    DSD Sampling Frequency:
    64x to 512x (native, I2S only)
    64x to 256x (DoP, I2S only)
    64x (DoP, other outputs)




  • Electrical

    Supply Voltage:
    15VDC

    Power Consumption:
    4.5VA

  • Size & Weight

    Size:
    150x160x35mm (wxdxh)

    Weight:
    net 0,3kg
    gross 0,7kg
