Crosby

Stereo power amplifier

Highest quality power in small size

The Crosby is a versatile high-efficiency Class D stereo power amplifier that is
the perfect complement to the Tosh preamplifier, both in format and sound.

Its power is sufficient to drive most loudspeakers effectively and cleanly, while its power delivery capacity can be greatly increased by configuring it in Bridge mode.
In this case, the Crosby becomes a powerful mono amplifier; two Crosbys configured as a bridge can drive virtually
any loudspeaker, be it an array of dynamic drivers or an electrostatic panel.

Of course, the Crosby can be connected to any preamplifier, not just the Tosh: for example, it is perfectly at home connected to the Young MkIV if the latter is used in the dual function of D/A converter and preamplifier.

It features both single-ended and balanced inputs, plus it has a trigger input to allow it to be turned on automatically by the preamplifier.

Due to its class-D design, it is virtually impossible to destroy; all overload situations are indicated on the front panel.

Reviews

The Crosby expresses from the outset the high efficiency and relaxed power typical of class D, which allows it to drive most loudspeakers with ease and without apparent failures....
Crosby, Young, Gifted and, er, not Black…John Scott hangs out with M2Tech’s Rockstar separates and finds himself helpless to resist their charms....
The first impression you get from this set is the modesty, simplicity and good taste of its design....

The Crosby offers the best together with…

null

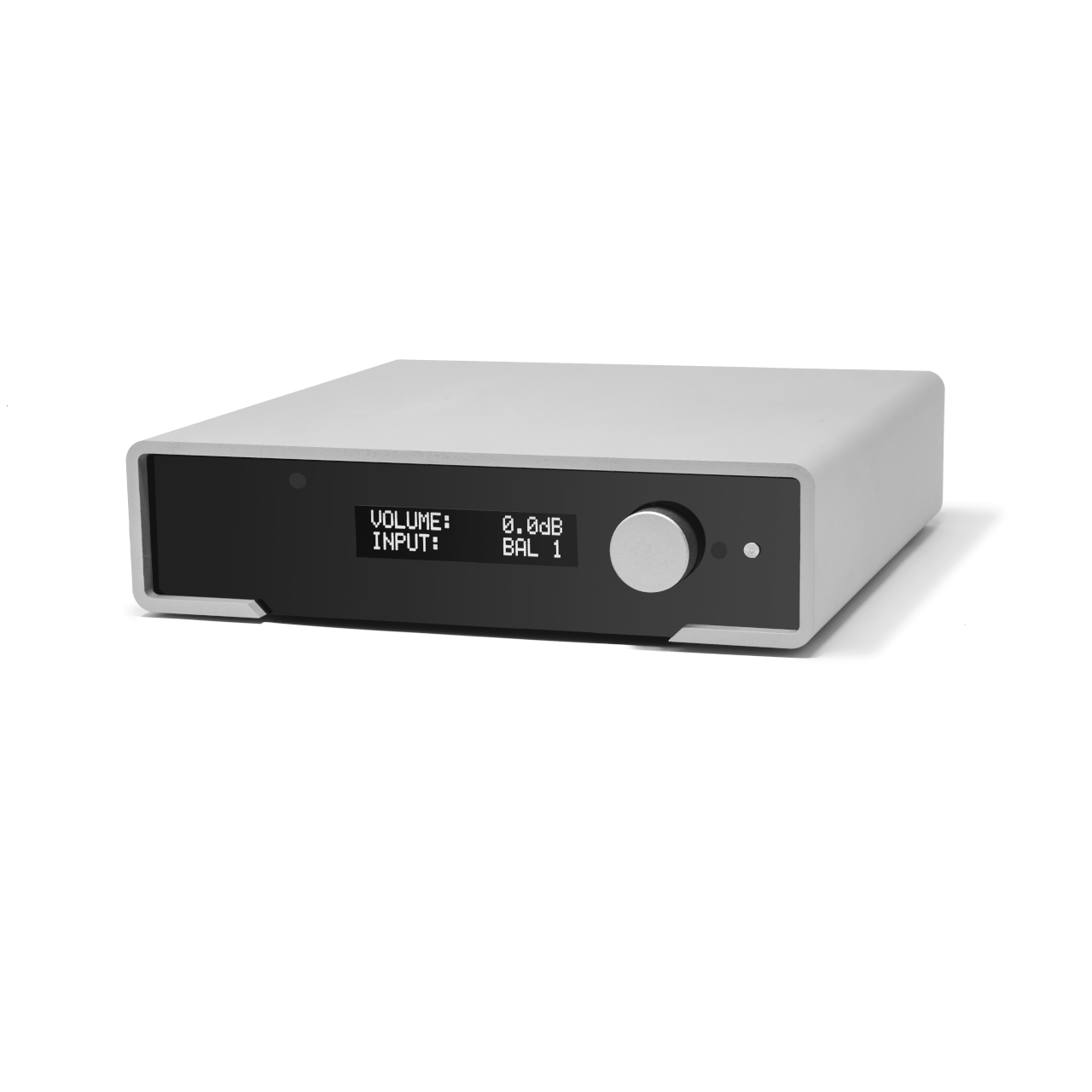

Tosh
Balanced line preamplifier
visiting...
null
Mitchell
Electronic crossover
analog
visiting...
null
Young MkIV
Very high resolution digital-to-analog converter and preamplifier.
visiting...
null
Marley MkII
High-performance headphone amplifier
.
visiting...

Specifications

Audio

Sensitivity:

1.25 Vrms
5 V (trigger)

Input impedance:

47 kOhm (single-ended)
20 kOhm (balanced)

Signal-to-Noise Ratio:

115 dBA (stereo)
118 dBA (bridged mono)

THD+N:

0.005% @ 60 Wrms per channel on 8 Ohms

Inputs and Outputs

Inputs:

single-ended (RCA)
balanced (XLR)
trigger (3.5mm jack)

Outputs:

speakers (terminals)
trigger pass-through (3.5mm jack)



Dimensions and Weight

Dimensions:

200x200x50mm (WxDxH)

Weight:

net 2.1 kg (including accessories)
gross 2.6 kg

Electric

Power output before clipping:

60 Wrms per channel (stereo, 8 Ohms)110 Wrms per channel (stereo, 4 Ohms)
180 Wrms (bridged mono, 8 Ohm)

Supply voltage:

100-130 VAC or 200-240 VAC, 50/60 Hz

Energy consumption:

615 W (440 Wrms on 2 Ohm mono)
1.5 W (standby)
